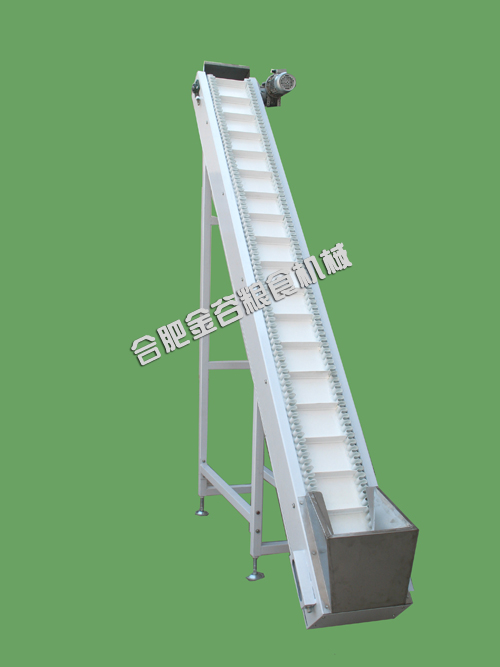

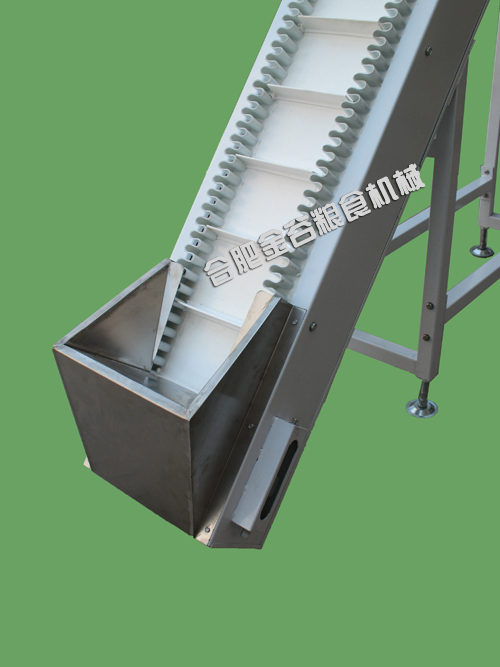

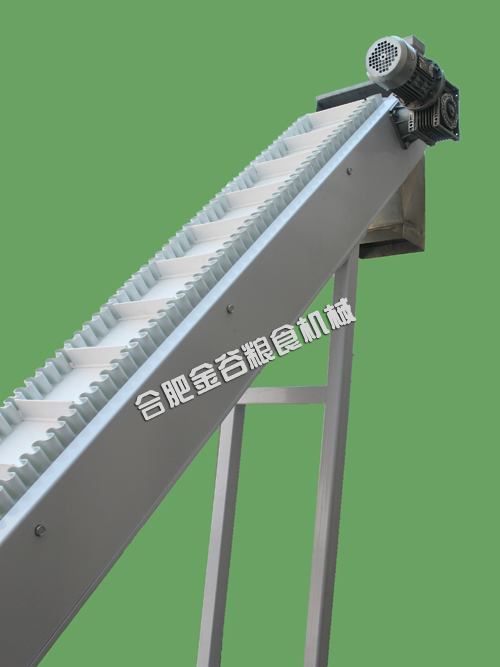

该系列产品为通用移动式胶带输送机，广泛用于食品、茶叶、谷物、化工等颗粒状散装物料的运输和转载输送。输送带主要以PVC（防静电）输送带为基带，两侧焊有裙边以防物料洒落，中间焊有挡板以提供输送能力并增大倾角。
输送机长度和高度可随用户需要而设计。
This type of conveyer is for conveying with tapes in common use. It can be widely used for loading and conveying grains in bulks like food, tea, cereal, chemica materials and so on. Its tapes are basically made of PVC tape which is anti-static electricity. Edges are welded along both sides of the tapes to prevent materials falling, and a shield in the center position to better improve conveying effects and expand inclination.
Conveyer machine length and height can be designed to customer requirement.
主要技术参数（Major technical parameters）
|
序号No. |
项目project |
单位unit |
参数parameters |
备注note |
|
1 |
输送量Conveying weight |
t/h |
0.5-5 |
输送量随物料容积及带宽不同，而变化 |
|
2 |
带速Tape speed |
m/s |
0.42 |
|
|
3 |
动力Power |
kw |
0.75 |
|
|
4 |
带宽Width of tape |
Mm |
320\400\500\600 |
可根据客户要求定制 |
|
5 |
输送倾角Transmission Angle |
度 |
45°-50° |
| |
